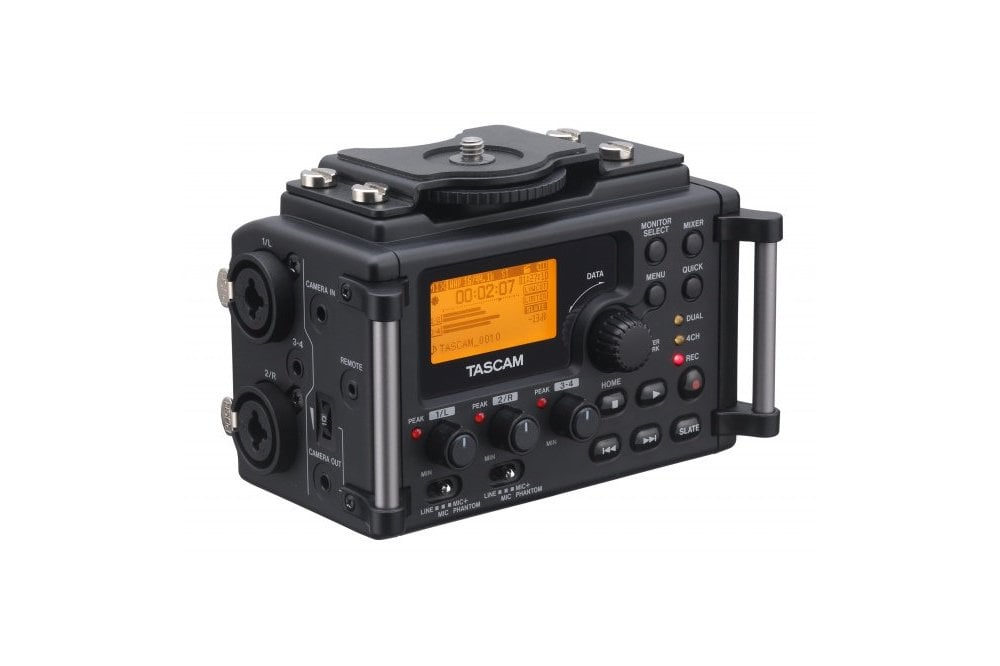

Tascam DR-60D

Record to SD/SDHC card (Up to 32GB)
Simultaneously record up to 4 tracks
TASCAM original HDDA microphone preamps
Recording format:44.1/48/96kHz 16/24bit (WAV/BWF)
Operates on 4-AA batteries, an AC adapter (sold separately) or USB bus power
Can extend battery life with BP-6AA battery pack (sold separately)
Dimensions: 133(W)×93.2(H)×78(D)mm (with the top adapter attached)
Weight: 510g (not including batteries)
Need more information on the Tascam range? Call us on 01254 265212

What Tascam say....

TASCAM's award winning DR-60D is the new audio recording solution for on-set filmmakers and videographers using DSLR's. For years, filmmakers have been trying different methods for recording audio - includng the use of bulky recorders designed for music and trying to transform the inferior audio technology built-into DSLR's. Now TASCAM has designed an answer that pros and amateurs alike have been waiting for.

The DR-60D is a brand new 4-track solid-state recorder utilizing TASCAM's decades of experience. The recorder utilizes high-grade HDDA pre-amps, legendary AD converters, and a durable but lightweight structure and shape. This device will fit snuggly under any camera or into any rig, and record up to 96kHz/24-bit high quality audio straight to SD/SDHC media. Filmmakers have at their disposal two 1/4"-XLR Locking Combo MIC/LINE Inputs, 3.5mm Stereo MIC Input, Camera In, Camera Out, Line Out and Headphone Out. Both 1/4"-XLR Combo Inputs supply +48V Phantom Power and the 3.5mm Input supplies Plug-In Power for microphones requiring a bias voltage.

The DR-60D is incredibly easy to use, employing TASCAM's very popular user interface and external controls for every major operation. The body structure, soft-touch keys and dials are designed specifically to help eliminate handling noise. The multiple record modes include, 4-Channel Record, Auto Record and TASCAM's Dual Record "Safety Track" Mode make the DR-60D one of the most versatile recorders on the market.

High-Quality HDDA(High Definition Discrete Architecture) Mic Preamps

High quality mic preamps are a necessity for high-grade sound. The DR-60D's HDDA mic preamplifirers utilize discrete circuitry and premium parts approved after months of evaluation tests. The HDDA s circuit achieves an incredibly high EIN (-120dBu).
In addition, CIRRUS LOGIC's AD converter (made famous on the DR-40 linear PCM recorder) is installed to ensure high-lineality recording from any input signal

4 Inputs, 3 Outputs and Simultaneous 4 Track Recording with Mixer Controls Built-In

The DR-60D can record up to 4-tracks simultaneously allowing for various mic set-ups. Inputs 1/L and 2/R can be selected for monaural operation or stereo link operation. There are 3 outputs at one's disposal. A CAMERA OUT for reference track recording to the camera, LINE OUT to run to a mixer, and a Headphone Out for direct monitoring. (In 4CH mode, 1/L and 2/R inputs cannot be selected for monaural operation.)
The DR-60D supplies mixing functionality to all 4 tracks. Adjust PAN, Level, Limiters, HPF (40/80/120Hz) and Delay easily from the user-friendly set-up. TASCAM is well known for having the easiest to use controls in the market. The DR-60D is ready to use right out of the box with its external, non-menu-intensive controls.

Multiple Record Modes (Including Dual "Safety Track" Record Mode) for Self-Tailored Recording

The DR-60D can be tailored further to one's recording needs with the various record modes. Choose between:

MONO/DUAL MONO mode:These modes are ideal for single source shooting
STEREO/DUAL STEREO mode:These modes are ideal for shooting with a stereo or mid-side microphone

4CH mode:This mode is ideal for all-around movie shooting. For example, you can record two sources separately plus one stereo microphone all simultaneously.

DUAL MONO and DUAL STEREO mode automatically provide a back-up safety track in case the initial levels where set too high and clips/peaks were encountered. The safety track can be set to record from -6dB to -12dB lower than the initial take.

Soft-Touch Keys to Eliminate Handling Noise and Various Other Features such as the Slate Function were Designed Specifically for DSLR Use

Every aspect of the DR-60D is designed specifically for DSLR Audio for Video Recording. The keys of the unit are designed specifically for quiet operation to eliminate handling noise. The Slate feature is designed to mark tracks easily while in production. The input and output layout is designed for versatile use. Whether the device is used under a camera, on a rig or strapped around a solitary sound engineer, TASCAM's DR-60D will meet all on-site audio production needs.

Dedicated CAMERA OUT Provides Simultaneous Recording between DSLR and the DR-60D

The CAMERA OUT connector outputs the sound mixed internally on the DR-60D. This output is equipped with an adjustable level control dial due to the lack of input level control on most DSLR's. This ensures a quality reference track is recorded onto your camera. Everything being recorded to the SD card can be sent to the camera - including slate tones - to make sync easier.

Versatile Slate Tone Generator Provides Easy-Adjustments for On-Site Movie Editing

The internal slate tone generator produces various tones for easy track making and recognition. Slate tones can be generated from 2 operation modes;

Automatic:OFF/HEAD(rec start)/HEAD+TAIL(rec start and end) (You can select duration of the slate tone: 0.5/1/2/3 sec)

Manual:Push the SLATE button for tone. (In HOLD, the SLATE button is disabled for mistake prevention.)

Channels 3 & 4 - 3.5mm Input Connector Supports High-Output Video Camera Microphones

The channels 3&4 input connector supports high-level maximum input up to +10dBV and have plug-in power available. Most video camera microphones are high-level output and equipped with a 3.5mm output connector.

Tripod Socket Placed on the Bottom and a Screw for Camera Attachment Placed on Top

The DR-60D can be placed between a DSLR Camera and a tripod, or mounted to a rig easily. In addition, the bracket of the top panel can be removed when you wish to attach the DR-60D to stabilizers.

510g Light-Weight Body Designed for Rugged Portability

The DR-60D's body was manufactured with very rigid plastic for a durable but lightweight design. TASCAM understands how important weight is to ensure one is getting the right shots and steady camera movement when filmmaking. In adiition to weight, the DR-60D is extremely compact while remaining feature-rich. Only 133mm (5.25") wide, the DR-60D will not interfere with any normal camera operation. Also, all batteries can be replaced without removing the device from the Camera or tripod / rig.

Features

Record to SD/SDHC card (Up to 32GB)

Simultaneously record up to 4 tracks

Record Mode:MONO, STEREO, DUAL MONO, DUAL STEREO, 4-CHANNEL

Recording format:44.1/48/96kHz 16/24bit (WAV/BWF)

TASCAM original HDDA microphone preamps

Recording levels can be adjusted independently for the 1/L, 2/R and 3-4 inputs

Two XLR/TRS inputs support +4dBu line level input and phantom power (24 or 48VDC on XLRF)

Plug-in power and high-output mic input supported on inputs 3-4

CAMERA OUT connector for output from the DR-60D's mixer (adjustable gain)

CAMERA IN connector for sound monitoring from the camera

Independent adjustable LINE OUT and HEADPHONE jacks for high-quality sound output

50mW/ch headphone output

Tripod mounting socket (bottom) and DSLR mounting screw attachment (top)

Handles protect the screen and can be used to attach a shoulder strap

Soft-Touch Rubber Keys for silent operation

HOLD switch to prevent accidental operation

QUICK button feature for easy access to various functions

128x64 pixel LCD with backlight

USB 2.0 connection for high-speed transferring of files

Mini USB cable included

Operates on 4-AA batteries, an AC adapter (sold separately) or USB bus power

Can extend battery life with BP-6AA battery pack (sold separately)

Dedicated remote control jack for the wired RC-10 remote control or RC-3F footswitch (both sold separately)

Internal mixer: PAN and LEVEL controls

Low cut filter(40/80/120Hz)

Limiter (1/L and 2/R can be selected for link-operation)

Delay function for microphone distance adjustment (up to 150ms)

M-S decode function

Slate tone generator (AUTO/MANUAL)

Selectable duration of slate tone from four positions (0.5/1/2/3 sec, when auto-generated)

Selectable slate tone generation. 3 positions: OFF/HEAD/HEAD+TAIL, when auto-generated

File name format can be set to use a user-defined word or date

Dual-recording function allows two files to be recorded simultaneously at different levels

Auto-record function can automatically start and stop recording at set level

Pre-recording function allows the unit to record a 2 second sound buffer before recording is activated

Self-timer function for solo recording

New file starts recording automatically without interruption when maximum file size is reached

Track incrementing function allows a recording to be split by creating a new file when desired

Jump back and play function

Equalizer function for playback, and level alignment function to enhance the perceived overall sound pressure

Resume function to memorize the playback position before the unit is turned off

MARK function up to 99 points per audio track

DIVIDE function

Full Specification

Recording media: SD card(64MB to 2GB), SDHC card(4GB to 32GB)

Recording format

WAV: 44.1/48/96kHz, 16/24bit

BWF: 44.1/48/96kHz, 16/24bit

Number of channels: 4channel (stereo x2)

Analog audio input

1/L, 2/R connectors

Connector: XLR-3-31 (1:GND, 2:HOT, 3:COLD)/6.3mm(1/4")TRS standard jack

Set to "MIC / MIC+PHANTOM"

Input impedance: 2k ohms

Phantom power: 48V +/-4V(10mA/CH) / 24V +/-4V(10mA/CH)

Maximum input level: 0dBu

Minimum input level: -72dBu

MIC input gain: TRIM MAX

LOW: +11dB

MID: +36dB

HIGH: +52dB

Set to “LINE”

Input impedance: 10k ohms or more

Standard input level: +4dBu

Maximum input level: +24dBu

3-4 connector

Connector: 3.5mm (1/8") stereo mini jack (this connector can be supplied plug-in power)

Input impedance: 10k ohms

Maximum input level: +10dBV

Minimum input level: -50dBV

MIC input gain: TRIM MAX

LOW: +3dB

HIGH: +26dB

CAMERA IN connector

Connector: 3.5mm (1/8") stereo mini jack

Input impedance: 10k ohms

Standard input level: -10dBV

Maximum input level: +6dBV

Analog audio output

CAMERA OUT connector

Connector: 3.5mm (1/8") stereo mini jack

Output impedance: 200 ohms

Standard output level: -50dBV

Maximum output level: -30dBV

LINE OUT connector

Connector: 3.5mm (1/8") stereo mini jack

Output impedance: 200 ohms

Standard output level: -10dBV

Maximum output level: +10dBV

PHONES connector

Connector: 3.5mm (1/8") stereo mini jack

Maximum output level: 50mW + 50mW

USB

Connector: Mini-B type

Format: USB2.0 HIGH SPEED mass storage class

REMOTE

Connector: 2.5mm TRS jack

Power: Four AA batteries(Alkaline or NI-MH),

USB bus power,

Dedicated AC adapter(TASCAM PS-P515U, sold separately),

Dedicated external battery pack(TASCAM BP-6AA, sold separately)

Power consumption: 5.4W

Dimensions: 133(W)×93.2(H)×78(D)mm (with the top adapter attached)

Weight: 510g (not including batteries)

Operating temperature: 0°C to 40°C

Standard accessories: USB cable, warranty card, Owner's manual

//
