Zoom MS-200D+ Multistomp Drive Guitar Pedal

The MS-200D+ features 200 drives and distortions, the most ever in one stompbox.

New Zoom Originals and Much, Much More
The MS-200D+ features 164 Zoom originals plus 36 emulations of classic tones that cover overdrives, distortions, boosts, fuzz, and more.
Create Your Own Distortions

With up to 200 custom patches, you can create unique distortions by chaining any two effects together in series, parallel, or alternate for the ability to quickly switch between two tones.

Color Changing Display
The LCD screen changes color, making it easier to distinguish each drive and distortion type while scrolling.

Solid Body
The MS-200D+ is built with a metal frame designed to withstand anything you throw at it.

Cross Key Switches
The Cross Key switches allow you to instantly switch between effects with a tap of your foot.

Tweak On
Adjusting and tweaking parameters for each drive and distortion can be done with the four encoder knobs.

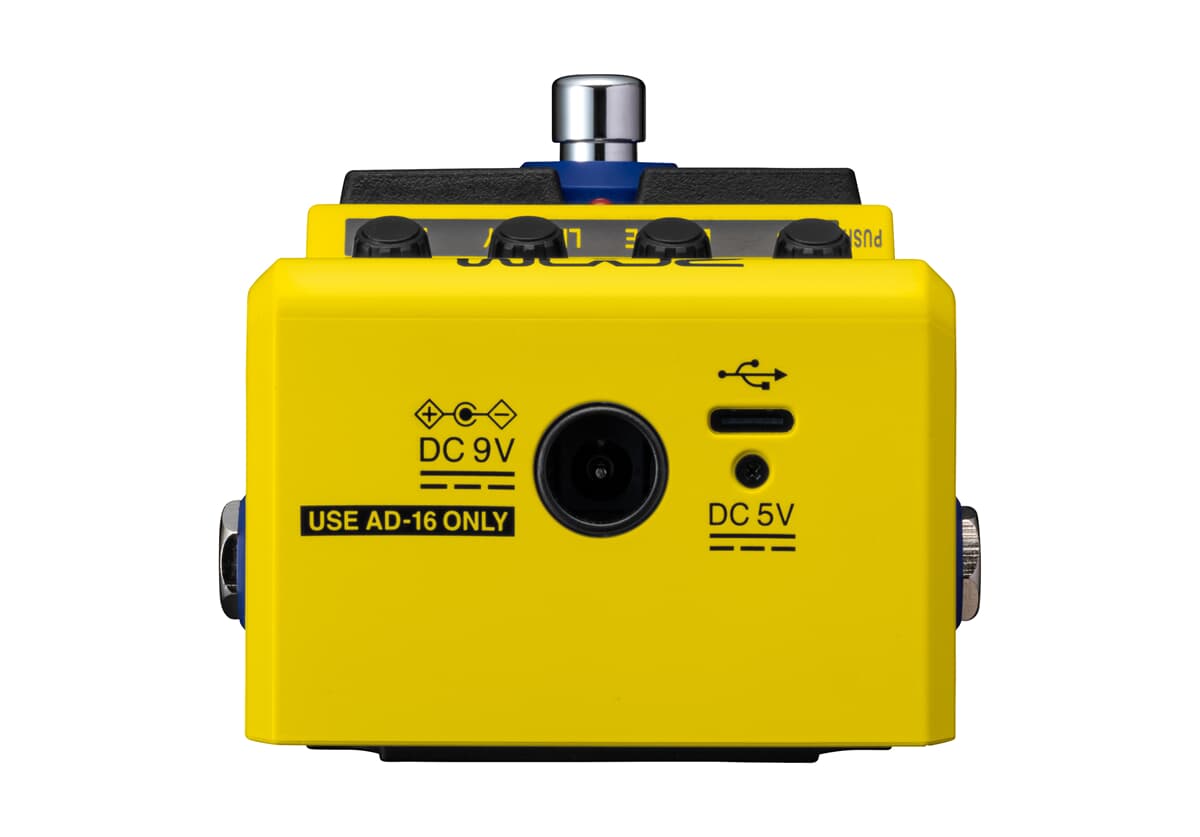

Power Options
The MS-200D+ runs on 2 AA batteries, or via USB-C or AC power.

Stay Tuned
The onboard chromatic tuner uses the color backlight to give visual feedback to help you tune quickly and accurately. It supports all standard guitar tunings as well as open & drop tunings.

Handy Guitar Lab
With a growing library of patches and drives & distortions, guitarists can continue to expand their sound with the Handy Guitar Lab app for iOS.

Technical Specifications


• Maximum number of simultaneous effects: 2 effects
• User patch memories: 250
• Sampling frequency: 44.1 kHz
• A/D conversion: 24-bit 128× oversampling
• D/A conversion: 24-bit 128× oversampling
• Signal processing: 32-bit
• Frequency response: 20 Hz – 20 kHz (+0.5 dB/−0.5 dB) (when 10kΩ load)
• Display: 160×128 dot-matrix LCD
• INPUT
  • Input: Standard mono phone jack
  • Rated input level: −20 dBu
  • Input impedance (line): 470 kΩ
• OUTPUT
  • Output: Standard mono phone jack
  • Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher)
• Input S/N 122 dB
• Noise floor (residual noise) OUTPUT –100 dBu
• Power: AC adapter: 9V DC 500mA center negative (ZOOM AD-16)
  • 2 AA batteries (alkaline, lithium or rechargeable NiMH batteries)
  • Estimated operation time using batteries:
  • These values are approximate. Battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
  • Alkaline batteries: about 7 hours
  • NiMH batteries (1900 mAh): about 6.5 hours
  • Lithium batteries: about 14 hours
• USB Port: USB 2.0 Type-C/Supported cable type: Type-C
• Handy Guitar Lab: USB 1.1 Full Speed
• Use a USB cable that supports data transfer. USB bus power is supported.
• Dimensions: 133 mm (D) × 79 mm (W) × 61 mm (H)
• Weight:
  • 346 g (excluding batteries)
  • 393 g (including batteries)
• Note: 0 dBu = 0.775 V
